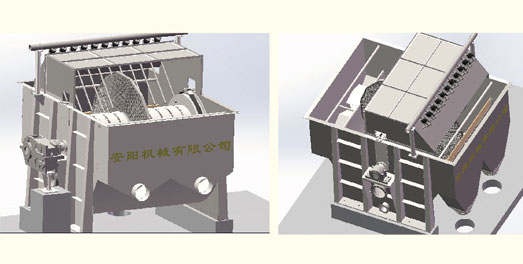

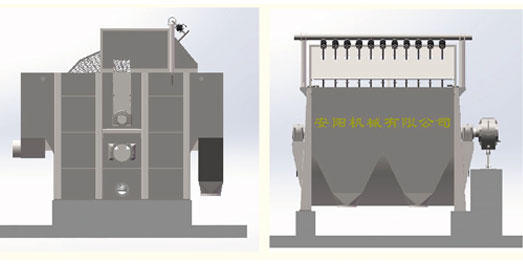

Pulp Gravity Disc Thickener
Pulp gravity disc thickener is mainly used for thickening of low consistency pulp. Different from traditional vacuum disc filter, it doesn’t need necessary installation height of water log. It can replace traditional pulp disc gravity thickener.
Advantage of Pulp Gravity Disc Thickener:
Pulp gravity disc thickener is applicable to shorter fiber or higher consistency of mechanical wood pulp, waste pulp, reed pulp, bagasse pulp and straw pulp with low freeness (higher beating degree);Easy operation, reliable operation, high production capacity, low power consumption and convenient management;
Filtration materials include stainless steel structure or polyester fabric.
Technical Parameters of Pulp Gravity Disc Thickener:
| ITEM | ZNP26(MODEL) | ZNP35(MODEL) |
|---|---|---|
| Dia.(mm) | 2600 | 3500 |
| Per-dis filtration area （m2） | 7.5 | 15 |
| Capacity |
0.8—3t/m2.d 0.3-2 |
|
| Inflow consistency (%) | 0.3-2 | 0.3-2 |
| Outflow consistency (%) | 3~5 | 3~5 |
| Washing pressure for sieve cleaning(Mpa) | 0.6-0.7 | |
Technical Specifications of Pulp Gravity Disc Thickener:
| Disc QTY | ZNH26 | ZNH35 |
|---|---|---|
|
Overall dimension L*W*H(mm) |
Overall dimension L*W*H(mm) |
|
| 6 | 3718*4035*3230 | - |
| 7 | 3998*4035*3230 | - |
| 8 | 4278*4035*3230 | 4705*5090*4383 |
| 9 | 4558*4035*3230 | 5005*5090*4383 |
| 10 | 4838*4035*3230 | 5305*5090*4383 |
| 11 | 5118*4035*3230 | 5605*5090*4383 |
| 12 | 5398*4035*3230 | 5905*5090*4383 |
| 13 | 5678*4035*3230 | 6205*5090*4383 |
| 14 | 5958*4035*3230 | 6505*5090*4383 |
| 15 | 6238*4035*3230 | 6852*5090*4383 |
| 16 | 6518*4035*3230 | 7152*5090*4383 |
| 17 | 6798*4035*3230 | 7452*5090*4383 |
| 18 | 7078*4035*3230 | 7752*5090*4383 |
| 19 | - | 8052*5090*4383 |
| 20 | - | 8352*5090*4383 |
