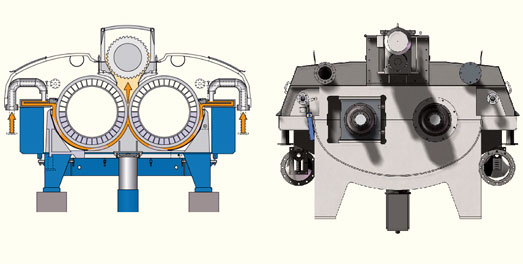

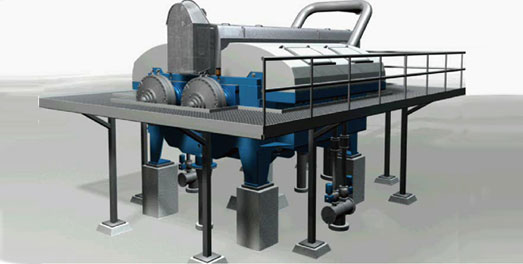

Pulp Washing and Dewatering-Twin Roll Pulp Press Washer
Advantages of Twin Roll Pulp Press Washer:
As a twin roll pulp press washer supplier, we adopting international advanced hydraulic drive system, pulp distributing system and washing system;
Our twin roll pulp press washer with washing, dewatering and displacing equipments;
Fully improved pulp feeding structure designed with independent intellectual property rights to get better distributing effects;
Brand-new sealing and scraping mechanisms with good sealing in operation and convenience in control;
Our twin roll pulp press washer have larger filtration area and stronger displacement performance to get better pulp washing effects;
Advanced Sweden hydraulic drive system with more stable and liable performances;
More modern control system for remote control.
Technical Parameters of Twin Roll Pulp Press Washer:
| Model /Item | Drum length (mm) | Drum Dia. (mm) | Drum Speed (rpm) | Drum Speed (rpm) | Discharge Consistency (%) | Production Capacity | ||
|---|---|---|---|---|---|---|---|---|
| Straw /Bagasse pulp | Bamboo pulp | Wood pulp | ||||||
| AMSG712 | 1200 | 700 | 2~20 | 3.5~10 | 20~35 | 30~40 | 60~80 | 80~100 |
| 1550 | 900 | 2~15 | 3.5~10 | 40~60 | 85~120 | 130~160 | ||
| AMSG920 | 2000 | 900 | 2~15 | 3.5~10 | 20~35 | 55~85 | 125~160 | 175~210 |
| AMSG928 | 2820 | 900 | 2~15 | 3.5~10 | 20~35 | 80~120 | 165~220 | 250~300 |
| AMSG935 | 3500 | 900 | 2~15 | 3.5~10 | 20~35 | 110~150 | 225~280 | 310~370 |
| AMSG940 | 4000 | 900 | 2~15 | 3.5~10 | 20~35 | 120~170 | 220~310 | 350~400 |
| AMSG945 | 4500 | 900 | 2~15 | 3.5~10 | 20~35 | 160~180 | 285~350 | 400~480 |
| AMSG1532 | 3200 | 1500 | 2~15 | 3.5~10 | 20~35 | 220~350 | 450~600 | 700~800 |
| AMSG1540 | 4000 | 1500 | 2~15 | 3.5~10 | 20~35 | 400~550 | 800~1000 | 1200~1500 |
| AMSG1550 | 5000 | 1500 | 2~15 | 3.5~10 | 20~35 | 1000~1300 | 1700~1800 | |
| AMSG1572 | 7200 | 1500 | 2~15 | 3.5~10 | 20~35 | 750~1000 | 1500~1800 | 2500~3000 |
